Klimata testēšanas kamera ar mitrumu

Vötsch VC³ 4100 990 Liter -42°C bis +180°C

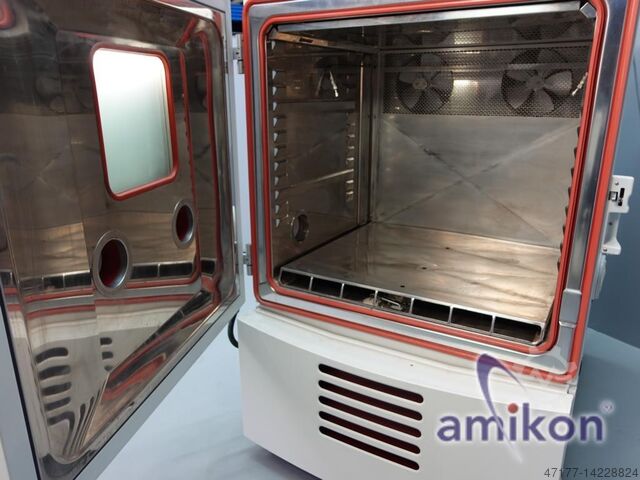

Here we offer a Vötsch climate test chamber.

Model: VC³ 4100 Air-cooled
With a temperature change rate of 3 K/min

Test chamber dimensions: Height 950 mm x Width 1100 mm x Depth 950 mm
Overall unit dimensions: Height 2000 mm x Width 1300 mm x Depth 1916 mm
Volume: 990 liters
Feedthroughs: Ø 125 mm, Ø 50 mm

Specifications for temperature tests:
Temperature range: -42°C to +180°C
Temporal temperature deviation: ± 0.1 to ± 0.5 K
Spatial temperature uniformity: ± 0.5 to ± 1.5 K
Temperature change rate:
- Heating: 4.0 K/min
- Cooling: 3.0 K/min
Maximum heat compensation at +20°C: 4500 W

Specifications for climate tests:
Temperature range: +10°C to +95°C
Dew point range: -3°C to +94°C
Humidity range: 10 to 98% RH
Temporal temperature deviation: ± 0.1 to ± 0.3 K
Spatial temperature uniformity: ± 0.5 to ± 1.0 K
Temporal humidity deviation: ± 1 to ± 3% RH
Maximum heat compensation: 500 W

Power supply: 3/N/PE AC 400V ±10% 50Hz
Rated power: 11.5 kW
Rated current: 22.0 A
Crsdsqwim Eepfx Afash
Refrigerant: R-404 A
Weight: approx. 840 kg
Type: VC³ 4100

For your peace of mind as a buyer, please note the following:
The following procedures are performed on all our offered chambers in advance:
1. Functional check and replacement of necessary components
2. If required, new charge of legally compliant refrigerant
3. Leak test with certificate
4. After successful testing, the chambers undergo a documented trial run

Condition: used
Scope of delivery: (see picture)
(Specifications may be subject to change or error. All details without guarantee!)
For further questions, we are happy to assist you by phone.
