Palešu krāvējs

SCHORR 2,5m / 3m / 3,5m Elektrostapler 1500kg

SCHORR Electric High-Lift Pallet Truck 1,500 kg Lifting Capacity
- Various lift height options available (2,500 mm, 3,000 mm & 3,500 mm)
- Low-maintenance and smooth operation
- Includes 24V batteries and charging unit
- 1.5 t lifting capacity
- NEW & In Stock!

Prices by lift height / variant:
- 2,500 mm lift height: €3,613
- 3,000 mm lift height: €3,781
- 3,500 mm lift height: €3,949

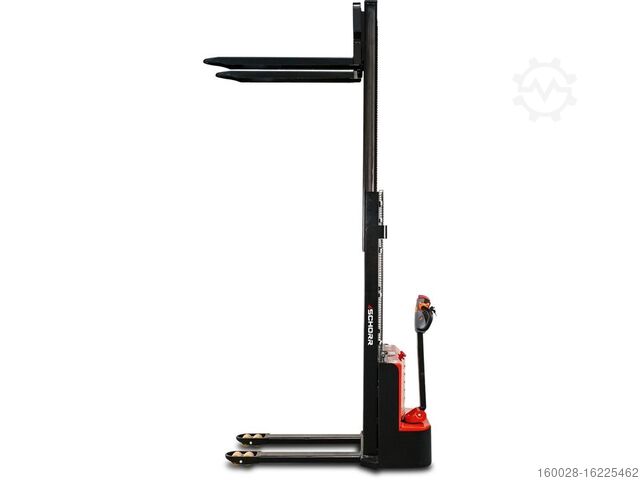

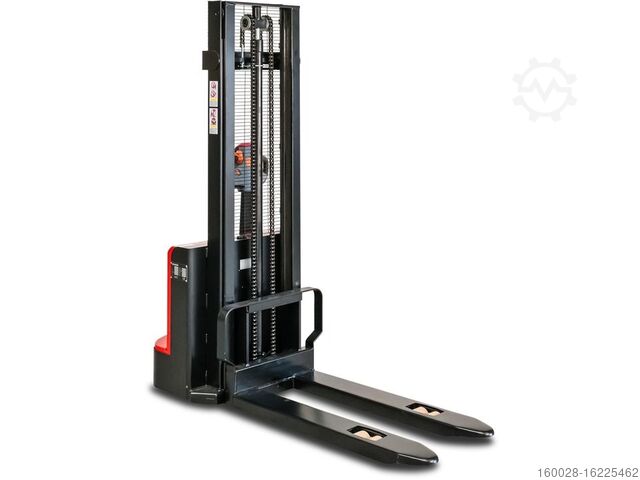

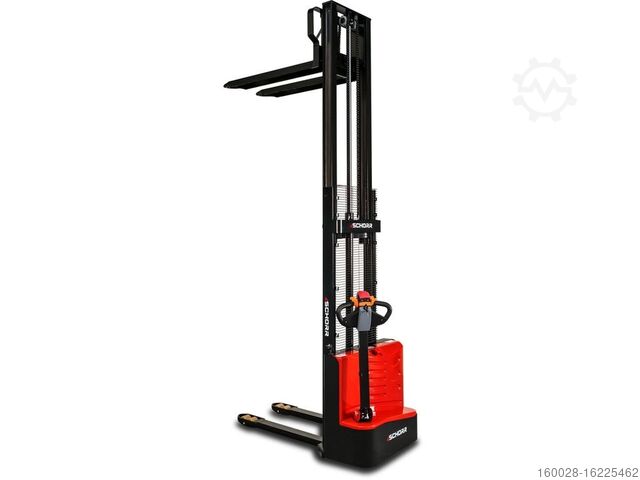

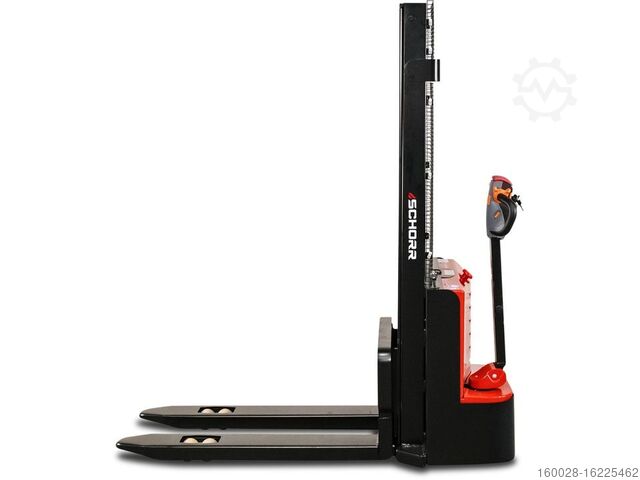

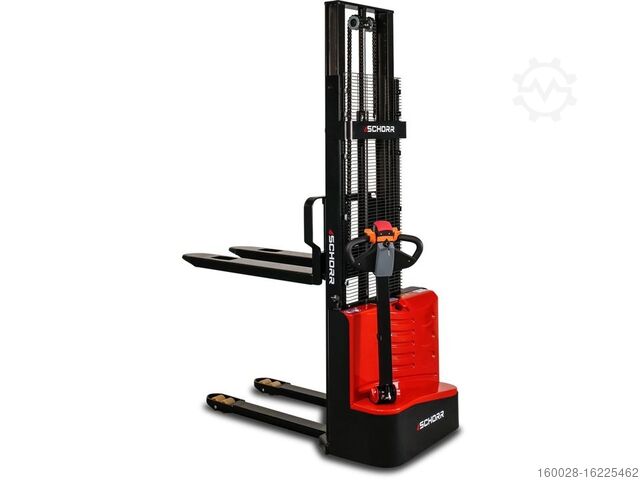

SCHORR ELECTRIC HIGH-LIFT PALLET TRUCK 1,500 KG WITH LIFT HEIGHT FROM 2,500 TO 3,500 MM

The SCHORR electric high-lift pallet truck gives you the capability to transport heavy loads up to 1,500 kg. Depending on the chosen model variant, it achieves a lift height between 2,500 and 3,500 mm. The fork length is 1,150 mm, making it ideal for both disposable and Euro pallets.

A major advantage is its compact mast height when retracted—just 1,745 mm (2,500 mm variant)—allowing it to fit through standard doorways.

This model is distinguished by its robust construction, and also features an integrated steel safety guard. Charging is made easy with the built-in charger. Simply connect the stacker to any standard 230V socket for operation.

The high-lift truck is equipped with a premium CURTIS control system. Operator instruments such as the battery indicator, emergency stop, and key switch are centrally located and always within direct view. The SCHORR pallet stacker also offers different driving modes, including a slow “creep” (turtle) mode for precise maneuvering.
Codpjttgg Asfx Afashc

POWERFUL IN EVERY RESPECT

The RR15HH electric pallet stacker easily handles most warehouse tasks with a lifting capacity up to 1.5 tonnes. Its robust steel frame not only ensures impact protection, but also delivers excellent maneuverability thanks to a compact design.

INTEGRATED CHARGER

The stacker comes with two maintenance-free 12V gel batteries (100 Ah each) and a built-in charger. Just plug into a standard 230V outlet for easy charging.

INTUITIVE CONTROL

The dual-handed operating handle is extremely user-friendly. Tried-and-tested components guarantee high ergonomics and operator comfort. Travel speed is infinitely variable, and with the selectable creep mode, even delicate goods can be handled with ease.

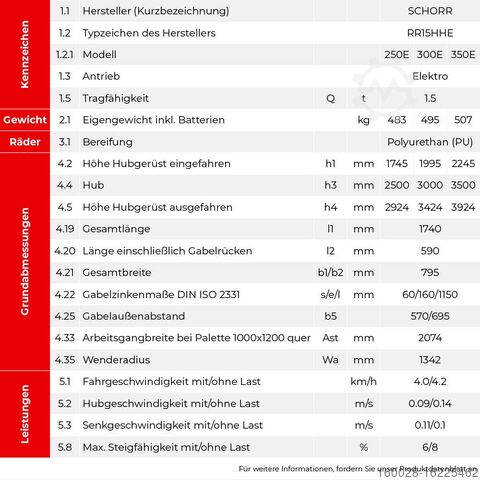

Technical Data

Manufacturer (abbreviation): SCHORR
Model code: RR15HHE
Rated capacity: 1.5 t
Model: 250E // 300E // 350E
Net weight incl. battery: 483 kg // 495 kg // 507 kg
Drive: Electric
Tyres: Polyurethane

Key Dimensions

Overall length: 1,740 mm
Overall width: 795 mm
Length incl. fork back: 590 mm
Lift height: 2,500 mm // 3,000 mm // 3,500 mm
Mast height (retracted): 1,745 mm // 1,995 mm // 2,245 mm
Mast height (extended): 2,924 mm // 3,424 mm // 3,924 mm
Fork dimensions to DIN ISO 2331: 60 mm x 160 mm x 1,150 mm
Fork outside width: 570 mm
Working aisle width, pallet 800x1200 lengthwise: 2,040 mm
Turning radius: 1,342 mm

Speeds

Travel speed laden/unladen: 4.0 km/h / 4.2 km/h
Lifting speed laden/unladen: 0.09 m/s / 0.14 m/s
Lowering speed laden/unladen: 0.11 m/s / 0.1 m/s
Max. gradeability laden/unladen: 6% / 8%

The SCHORR team is happy to assist you with any questions about our pallet stackers. Reach our expert team by phone or email—we look forward to hearing from you and assisting with your requirements.
