Revolver prese Amada Europe 245

AMADA PROMECAM Europe 245

AMADA EUROPE 245 turret press
Technical data :
- CNC control : FANUC 18 i-P
- pressure : 20 Ton
- max. punching format without interceptor and with 31 station head : 1020 x 1290 (Y-10; Y1010 T2XX; Y-50; Y970 T3XX)
- max. size of punched sheet with interceptor : 1020 x 2540 mm
- max. size of punched sheet with capture + 1 turn (optional) : 1500 x 2540 mm
- max. sheet thickness on ball table : 6 mm
- max. thickness of sheet on brush table : 3 mm
- max. permissible weight on table : 100 kg
- punching accuracy : +-0.1 mm
- positioning accuracy : +-0,07 mm

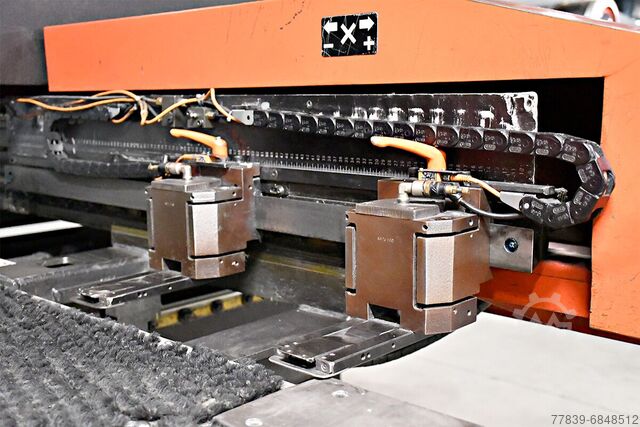

- number of pneumatic clamps/grips : 2
- number of axes controlled simultaneously : 3: X, Y, C
- turret speed : 25 rpm.
- number of strokes per min, distance 25.4 mm, cylinder stroke 6.5 mm : 220 strokes/min.
- stroke punching, distance 1 mm, cylinder stroke 6.5 mm : 480 strokes/min.
- minimum programmable increment : 0.001 mm
- number of tool stations - 31, including 3 rotary ones
- max. tool diameter : 88,9 mm
- rotary stations : 2x1 1/4"; 1x2"
- max. sheet thickness for rotary station : 3 mm
- slider : hydraulic
Dy9dqa
- bottom feed feed turning point : 4 programmable points
- working table : X=600, Y=400
- memory capacity : 64 (~63 programs) Kb
- graphic screen : 10,4" LCD
- stop time : 295 ms
- air pressure : 5 kg/cm2 (bar)
- air volume : 250 Nl/mn
- oil amount : 160 L
- light curtain (3 beams) : standard in European countries
- installed power : 27 kW
- machine dimensions : L=4460 mm, l=2750 mm, h=2130 mm
- transport dimensions : L=4820 mm, l=2500 mm, h=2414 mm
- weight of punching machine AMADA EUROPE 245 : 10 000 kg
- time worked : 35 000 working hours
Production 2000.12 , installation 2001
1 szy owner , service book with full history of the machine, machine in perfect condition, worked on thin sheets
Start-up warranty
Training on operation included in the price.
Contact person : Robert 500114006
