MANITOU MT1840 Easy Comfort

Manitou MT1840 Easy Comfort Telehandler 18m 4t

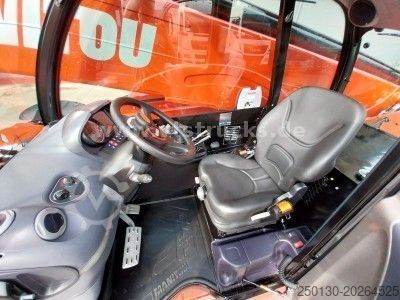

The MT 1840 Easy telehandler is designed for construction sites that require significant lifting heights. With a lifting capacity of 4 tonnes, it allows pallets to be safely placed at heights of up to 17.55 m. This robust machine is equipped with a sheet metal-clad low door and an electric window to minimize the risk of breakage. Excellent cabin visibility ensures the operator can always keep an eye on site activity and follow the load to its drop-off point. The MT 1840 can be easily transported from one site to another thanks to numerous lashing points, and its 37 cm ground clearance, three steering modes, and four-wheel drive make it adaptable to any terrain.

Max. load capacity: 4,000 kg
Max. lift height: 17.55 m
Max. outreach: 13.08 m
Bucket breakout force: 7,400 daN
Overall length (with carriage): 6.15 m
Length to fork face: 6.27 m
Overall width: 2.36 m
Overall height: 2.45 m
Wheelbase: 3.07 m
Ground clearance: 0.37 m
Cabin width: 0.89 m
Tilt angle (up): 16°
Tilt angle (down): 110°
Iaedpfx Aoxmqwqedlol
Turning radius (over tires): 3.94 m
Unladen weight (with forks): 11,710 kg
Total weight: 11,710 kg
Tyres: 400/80 - 24 - 162A8
Engine: Deutz Stage V, Tier 4 Final TD 3.6 L
Cylinders: 4 – 3,621 cm³
Engine output (HP/kW): 75 HP / 55.40 kW
Max. torque / engine speed: 340 Nm @ 1,600 rpm
Tractive force: 8,320 daN
Transmission: torque converter
Number of gears (forward/reverse): 4 / 4
Max. travel speed: 20 km/h
Automatic park brake, oil-immersed disc brakes on front and rear axles
Type of hydraulic pump: gear pump
Hydraulic flow rate / pressure: 106 l/min – 270 bar
Hydraulic oil capacity: 135 l
Fuel tank capacity: 140 l
Steering wheels (front/rear): 2 / 2
Drive wheels (front/rear): 2 / 2

Errors and prior sale reserved.
Internal reference number: R64
