Parts washer, spray washing machine

Glogar CM 13 - 2 Tank

Parts Cleaning System / Spray Cleaning System Type CM13
2-Tank (Washing + Rinsing) including air knife blow-off
Dodpfx Amev Tm Aye Secp

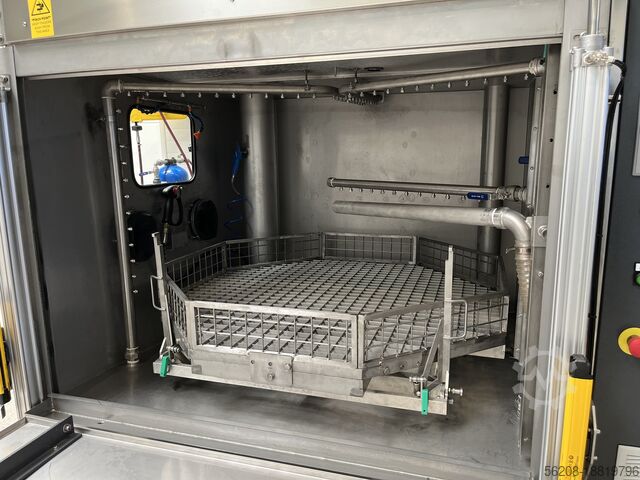

Basket Diameter: 1,300 mm (octagonal)
Max. load capacity: 1,000 kg
Basket is loaded and unloaded by the operator using a transfer cart (detachable/mobile) positioned in front of the machine.
Useful height: 800 mm
Wash tank: Volume: 430 liters, Spray pressure: 6.0 bar
Rinse tank: Volume: 280 liters, Spray pressure: 4.0 bar
Total connected load: approx. 52 kW
Control: Siemens S7-1200 with KTP700 touch panel

Including the following features:
+ automatic water refill for both tanks

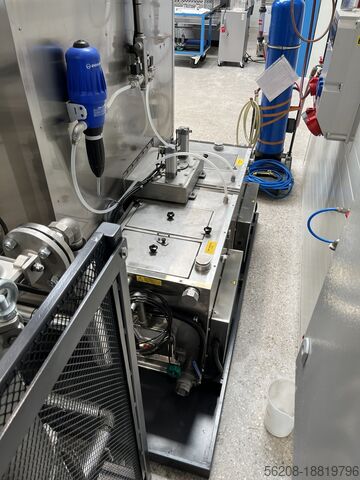

+ automatic chemical dosing 1-10% (Dosatron)
+ special spray system (can be optionally activated) for small components (= E-spray system)
+ side channel blower with height-adjustable air knife system (blow-off drying)
+ steam extraction including condensate return
+ weekly timer for electric heating
+ pre-configured for retrofitting an oil separator
+ media filtration via bag filter (manufacturer Eaton, Topline) in both circuits (washing and rinsing)
+ external cladding with stainless steel sheet
+ complete system fully insulated
+ tanks separated into two modules; fully insulated (different temperatures possible)
+ removable filter baskets in the return flow

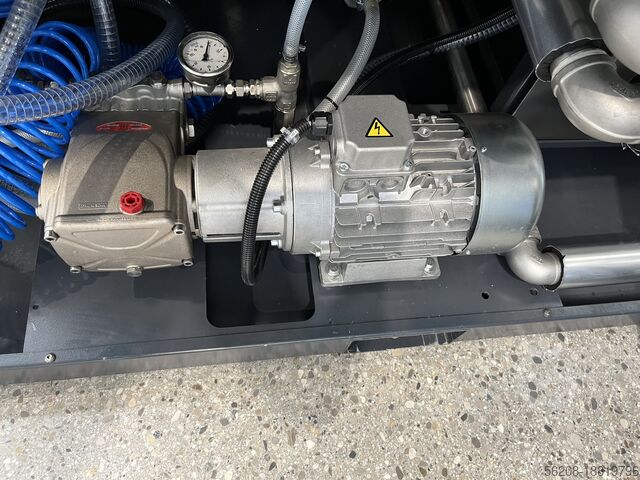

+ stainless steel circulation pumps incl. mechanical seal and soft starter

The system is exhibited at the Glogar Technology Center and is used exclusively for washing trials.
