Slīpzāģis

Elumatec

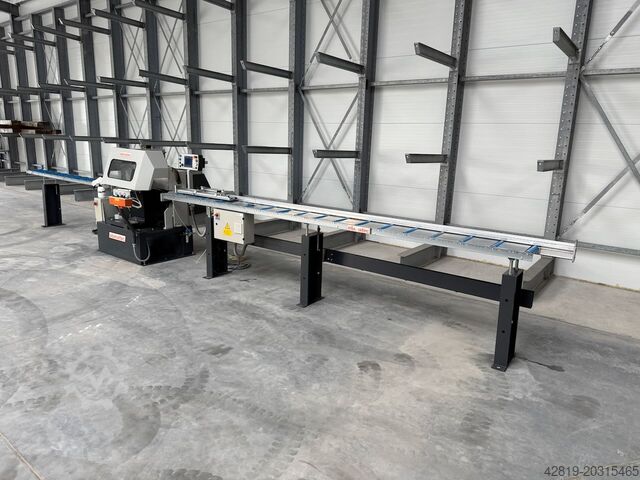

Elumatec mitre saw, type: MGS 105, year: 2009, equipped with stop and measuring system Elumatec type: AMS 200

Serial no.: 1050126568
Swivel range manually 22.5° to the left and right, with digital display
Ibjdpfx Absxn Umlj Ijc
Tilting range pneumatically from 90° to 45°
Saw blade diameter: 420 mm
Saw blade speed: 2,800 rpm
Power output: 4 kW
Electrical connection: 230/400 V, 3 Ph, 50 Hz
Compressed air connection: 7 bar
Air consumption: 20 l/min without spray, 32 l/min with spray
Dimensions (L x W x H): 1,400 x 1,500 x 1,880 mm
Weight: 750 kg
Stop and measuring system AMS 200
For precise cutting to length of aluminium profiles
Serial no: 1050126568
Length: 4,500 mm
Positioning accuracy: +/-0.1 mm per metre
Electrical connection: 230 V; 1 Ph 50/60 Hz
Pneumatic clamping in position
Matrix display
5.7" with membrane keypad and handwheel for navigation in the operating menus
Memory for 1,000 data records
The memory can store set number, length dimension, profile number, angle position and quantity.
USB interface on the front
Roller conveyor

(Specifications subject to change and errors excepted; prior sale reserved)
