Cisternas automašīna

5 KAMMER ALUMINIUM TANKAUFLIEGER ADR

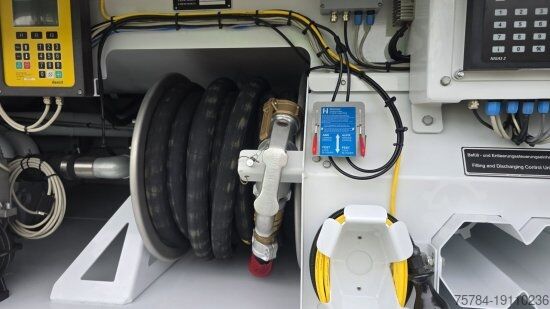

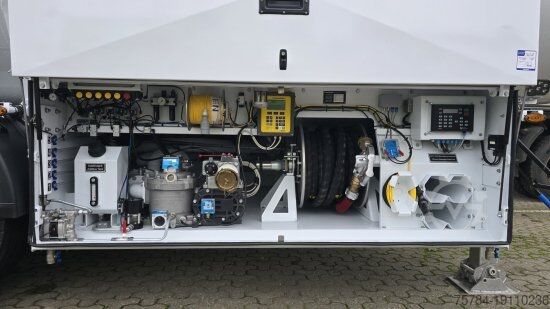

Koluman 5 compartment aluminum tank trailer with ADR The tank unloading system consists of 4 pneumatic bottom loading valves Filling and emptying system: Crossover prevention (COP) according to EN 14116 for product and vapor recovery. Filling with pneumatic API couplings Discharge: Gravity discharge of 3 chambers simultaneously via pneumatic API couplings and discharge nozzles. Overfill protection and pressure hose rupture control active. Gravity or pumped discharge through dry hose via distributor and dosing system, overfill protection and pressure hose rupture control active. Pumped and metered delivery via hose reel with a pressure of up to 8 bar, overfill protection and pressure hose stop control active. Dosing up to 800 l/min, including temperature compensation. Pump filter counter: made by Niehüser Filling and discharge control unit: 2 units, made by Niehüser Hose reel: pneumatically operated with 20 mm hose length. 2xFire extinguisher with box 2 lockable aluminum toolboxes 2-unit hose carrier (chasis and hose reel box inside) Tank shapeCylindrical Hazardous goods tankLGBF Tank Class-3 Total length (L)11,250mm Total width (W)2,550mm Total height (H)3,545mm Wheelbase (WB)6.800mm Fifth wheel coupling height(SKH) 1,210mm Total load weight35,000 kg Total tank volume40,000 L Tank volume 1st compartment 15,000 L Tank volume 2nd compartment 6,500 L Tank volume 3rd compartment 5,500 L Tank volume 4th compartment 5,500 L Tank volume 5th compartment 7,500 L Empty weight (-/+3%) 5,540 kg Tank density min.5mm Tank end partitions and baffle plate (ADR) min. 5mm The tank body is designed and built in accordance with the ADR guidelines for the transportation of hazardous goods in accordance with DIN EN 13094. Made of 5182HW aluminum with min. 5mm thickness for aluminum tank body. A pool system catches any spillage during
