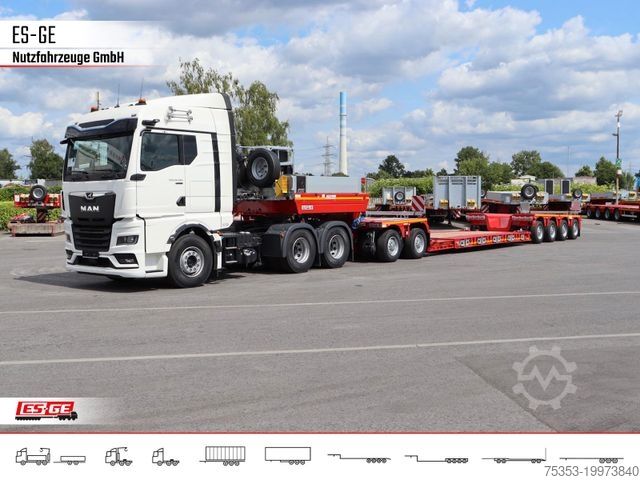

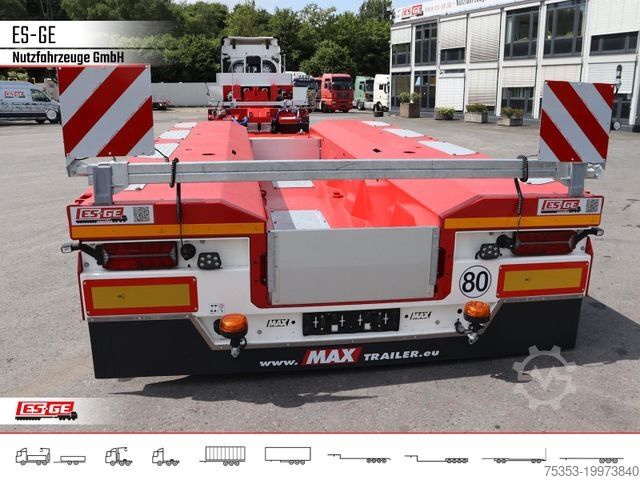

FAYMONVILLE MAX 710 Tiefbett 2+4 PA ATX

You can find our complete range of vehicles, including those available immediately or at short notice, on our website. The following is an excerpt from the equipment list; the full specification is available upon request.

Gooseneck:
* Gooseneck hydraulically liftable/lowerable and detachable
* Length approx. 3,650 mm. For tractor units: 6 x 4 or 8 x 4

2-Axle Compact Front Bogie:
* Hook mounts front and rear. Length: approx. 2,200 mm
* Chassis width: approx. 2,850 mm

Lowbed:
* ATX-A lowbed with telescopic longitudinal beams in low-profile design, with fixed hardwood flooring, approx. 50 mm thick
* With drive-over bridge hooks at the front and bolt-on/lug coupling at the rear
* Base width: approx. 2,850 mm
* Length: approx. 7,150 mm
* Beam height: approx. 300 mm
Csdpfsxbv Ausx Afashc
* Beam width: approx. 650 mm
* Loading height approx. 450 mm, ground clearance approx. 150 mm

4-Axle Rear Bogie:
* Mechanical pin/lug coupling for attaching a lowbed at the front
* Rear closing cross-member
* Chassis width: approx. 2,850 mm
* Chassis length: approx. 5,480 mm

2-Axle Front Bogie:
* Pendulum axles, all axles hydro-mechanically forced-steered
* Hose rupture valve on the axle compensation cylinder with automatic reset function
* Hydraulic cylinders with shut-off valves and locking pins for securing in raised position
* Axles finished with 2 coats of 2-component paint in MB7350 Novagrau
* Technical axle load: approx. 14,640 kg (62 km/h)
* Hydraulic axle compensation

4-Axle Rear Bogie:
* Pendulum axles, all axles hydro-mechanically forced-steered
* Hose rupture valve on the axle compensation cylinder with automatic reset function
* Hydraulic cylinders with shut-off valves and locking pins for securing in raised position
* Axles finished with 2 coats of 2-component paint in MB7350 Novagrau
* Technical axle load: 14,640 kg (62 km/h)
* Hydraulic axle compensation

Tyres:
* Tyres according to manufacturer’s choice (M+S) 285/70 R19.5
* Load index 150/148J

Paintwork:
* Entire steel structure is automatically blast-cleaned after welding using a turbine blasting system
* Second round of blasting with corundum for optimal coating adhesion
* HRM-metallization of the entire vehicle chassis with ZINACOR 850 (85% zinc / 15% aluminium)
* Final coat with 2 layers of 2-component topcoat, single colour in RAL 3002 Carmine Red, corresponding to RAL system 841GL

Including the following accessories:
* Steel front wall, approx. 400 mm high
* Plug-in aluminium side and rear walls for the gooseneck, approx. 400 mm high
* 3.5-inch king pin
* Truck hydraulic connection with flow regulator (20 l/min), incl. gallows for supply line suspension
* The tank of the tractor unit must have a minimum capacity of 80 l
* With MAX Trailer couplings; otherwise, couplings to be supplied by the customer ex works
* BEKA-MAX central lubrication for one gooseneck with standard grease NLGI-2
* Multi-coupling hydraulic connectors on the gooseneck
* Front bogie with separate air connection for pneumatic tools
* BEKA-MAX central lubrication for a 2-axle bogie with standard grease NLGI-2
* Prepared for receiving bolt-on container positioning for 1 x 20' or 1 x 30' containers on outer beams
* Without container locks
* Mounts on the outer beams of the loading area for installing folding marker extensions
* BEKA-MAX central lubrication for a 4-axle bogie with standard grease NLGI-2
* Rear bogie equipped with a socket for remote cable steering
* Rear bogie with trough
* One LED beacon with mounts on the left and ri
